Introduction

If you are looking for a Tamiya Land Rover Defender 90 CC-02 review, this guide covers the essentials: how the kit goes together, how the CC-02 chassis performs on the trail, which upgrades are worth making, and which motor and ESC combinations suit this scale truck best. The Defender 90 CC-02 pairs classic Land Rover styling with a shaft-driven 4WD platform that can be tuned for trail driving, light crawling, and scale realism.

In this article, I break down the Tamiya Defender 90 CC-02 specifications, what is included in the kit, the best CC-02 upgrades, how to improve traction and suspension, and which electronics are worth considering if you want better low-speed control. Whether you want a realistic trail truck or a capable project build, this guide answers the most common questions buyers and builders ask.

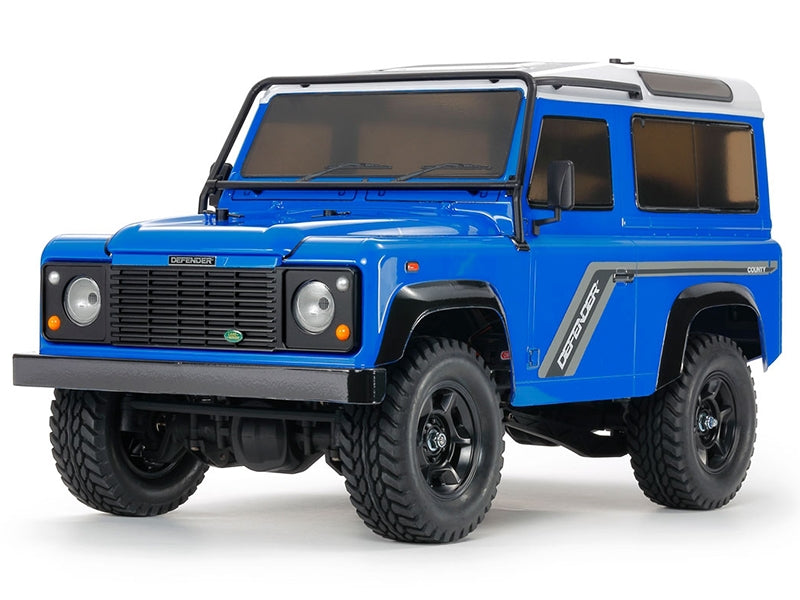

Tamiya Defender 90 CC-02 at a Glance

At its core, the Defender 90 CC-02 is a 1/10 scale R/C assembly kit designed to balance accurate looks with practical off-road ability. It measures 429mm long, 200mm wide, and 215mm high, rides on a 242mm wheelbase, and uses a shaft-driven 4WD layout on the CC-02 ladder-frame chassis.

·         Best for: Scale trail driving, light crawling, and custom builds

·         Chassis type: Ladder frame, shaft-driven 4WD, front and rear 4-link rigid suspension

·         Included motor: 540 brushed motor

·         Needs separately: Radio system, steering servo, battery, charger, ESC, and polycarbonate paint

What Makes the Tamiya Defender 90 CC-02 Special

The biggest strength of this kit is that it does not force you to choose between looks and usability. Tamiya has captured the unmistakable boxy profile of the 1990 Defender 90 with a lightweight polycarbonate shell, separately moulded detail parts, and LED-compatible light buckets, while the CC-02 chassis underneath is genuinely useful on dirt trails, roots, rocks, and uneven ground. Tamiya describes the platform as an off-road-evolved chassis designed for a wide range of surfaces, and that comes through in the way the truck combines a longitudinal motor layout, separated gearbox and transfer case, and four-link rigid suspension at both ends.

That mix of scale realism and trail-ready design is why the Defender 90 works so well as a project platform. It looks complete in stock form, but it also responds well to thoughtful setup changes such as lower gearing, locked differentials, better tyres, and improved electronics.

Tamiya Defender 90 CC-02 Specifications

·         Scale: 1/10

·         Length: 429mm

·         Width: 200mm

·         Height: 215mm

·         Wheelbase: 242mm

·         Gear ratio: 17.33:1 with the standard 16T pinion gear

·         Drivetrain: Shaft-driven 4WD

·         Motor: 540 brushed motor included

Building the Tamiya Defender 90 CC-02 Kit

This is an unassembled kit, which is part of its appeal. The build gives you a proper mechanical introduction to the truck, from the gearbox and transfer case to the links, axles, and oil-filled dampers. It also means you can make smarter setup choices during assembly instead of undoing stock decisions later.

You will need to supply a 2-channel radio system, steering servo, battery, charger, and polycarbonate paint, while some regions also list the ESC separately. That makes this a rewarding builder’s kit rather than a ready-to-run purchase.

Best Tamiya CC-02 Upgrades for Trail Performance

Lock Both Differentials for Better Crawling Control

The kit includes plastic diff lockers in the box. Tamiya often suggests open differentials for smoother street driving, but open diffs can leave the truck stranded as soon as one tyre loses contact or grip on the trail.

• The Trick: Drop the plastic diff lockers directly into the gear housings for both the front and rear axles during assembly.
• The Result: This locks the axles permanently, forcing all four tires to spin at exactly the same speed for unstoppable traction.

Replace Stock Bushings with Ball Bearings

The stock plastic and metal bushings create extra friction and wear more quickly than bearings, especially once the truck sees regular trail use.

• The Trick: Before you start assembling the transmission or axles, buy a complete CC-02 sealed ball bearing kit.
• The Result: Replacing every bushing with smooth bearings reduces drivetrain drag, extends battery life, and prevents the axle housings from wearing out.

Improve Suspension Articulation for Rough Terrain

To clear rocks and let the short-wheelbase Defender articulate over uneven ground, you want as much suspension travel as the stock setup can sensibly provide.

• The Trick: When assembling the CVA oil dampers, use the longest plastic rod-ends provided in the parts tree, and do not place internal limiters/spacers inside the shock body.
• The Result: This raises the ride height slightly and lets the 4-link solid axles drop lower to keep the tires pressed firmly against the ground.

Upgrade the Stock Tyres for More Grip

Reviewers note that the stock Tamiya block-pattern rubber tires are incredibly hard and offer very little grip on wet dirt, mud, or rocks.

• The Trick: Keep the scale-accurate black wheels but swap out the stock rubber for soft-compound all-terrain crawler tires (aim for a maximum outer diameter of roughly 90mm to 95mm so they do not rub against the Defender's wheel wells).
• The Result: Soft rubber moulds around rocks and roots, giving you a massive boost in trail performance.

Upgrade the Stock Tyres for More Grip

Best Motor and ESC for the Tamiya Defender 90 CC-02

Premium Option: Hobbywing Fusion Pro 2300KV

For builders who want a neater, more advanced electronics setup, the Hobbywing QuicRun Fusion Pro 2300KV stands out because it combines the motor and ESC into one compact unit. Retail and product descriptions consistently highlight the cleaner installation, strong low-speed torque, FOC control, IP67 weather resistance, and powerful drag brake, all of which suit a scale trail truck very well.

Budget Option: Hobbywing 1080 G2 with a 555 Brushed Motor

If you prefer a traditional brushed setup or want to keep costs lower, a strong option is the Hobbywing QuicRun 1080 G2 ESC paired with a 555-size 11T or 13T 5-slot motor.

The Hobbywing 1080 G2 remains one of the strongest brushed crawler ESC choices thanks to its programmable drag brake, waterproof design, and selectable BEC voltage. Paired with a 555-size motor, it delivers smooth low-speed control and a simple, reliable setup that suits the CC-02 very well.

Best CC-02 Setup for Different Terrain

One of the most useful things about the CC-02 platform is that you can tune it for very different surfaces. The ideal differential setup, ride height, and tyre choice change depending on whether you are driving on hard surfaces, in grass, on muddy trails, or across rocks.

Pavement and Smooth Asphalt

On high-grip, hard surfaces, the goal is to prevent the top-heavy Defender body from tipping over in sharp corners while saving your drivetrain from excessive stress.

• Differentials: Fully Open (Front & Rear). Unlock both differentials by removing the plastic lock blocks. This allows the inner and outer wheels to spin at different speeds during tight turns, preventing the truck from hopping, binding, or snapping components on high-traction tarmac.
• Suspension: Low & Stiff. Clip the thickest plastic preload spacers (included in the kit) onto the CVA oil dampers to compress the springs. You can also move the lower shock mounts to the outermost positions on the suspension links to drop the overall ride height.
• Tires: Stock Tamiya Block Tires. The hard rubber compound included in the box is perfect for pavement because it does not wear down quickly on abrasive asphalt.

Grass and Garden Lawns

Short and long grass creates a massive amount of drag against the bottom of the chassis and easily snags low-hanging suspension links.

• Differentials: Locked Rear / Open Front. Locking the rear differential gives you the constant pushing power needed to plow through thick blades of grass, while leaving the front differential open retains responsive steering control around garden flower beds.
• Suspension: Maximum Ride Height. Remove any internal shock travel limiters and use the longest plastic eyelets at the bottom of the dampers. This lifts the chassis belly high off the ground to clear grass tufts and prevents the undercarriage from dragging.
• Tires: Large Diameter Chevron/Lug Tires. Swap the stock tires for wider, taller options (around 95mm outer diameter) with deep, widely spaced tread blocks that won't get choked or wrapped up in cut grass.

Loose Dirt, Mud, and Trail Paths

Loose earth and wet dirt require a setup that digs deep into the terrain to find grip without letting the wheels spin uselessly in place.

• Differentials: Fully Locked (Front & Rear). Drop the plastic diff-lockers into both axle housings. Loose dirt offers very little resistance, so locking both axles guarantees that power is continuously delivered to all four tires even if two of them are spinning in slick mud.
• Suspension: Medium Ride Height & Soft Dampening. Use a light-weight shock oil (such as Tamiya 200wt or 300wt silicone oil) to allow the suspension to react quickly to tree roots and dips in the trail. Keep a medium ride height to maintain a stable centre of gravity.
• Tires: Soft Compound Mud-Terrain (M/T). Look for tires made from a super-soft, sticky rubber compound featuring aggressive side lugs. These lugs bite into the sidewalls of muddy ruts to pull the Defender forward.

Rocky Terrain and Scale Crawling

Crawling over large rock piles requires slow, precise movements and maximum tyre contact over jagged, uneven surfaces.

• Differentials: Fully Locked (Front & Rear). Essential for crawling. Without locked diffs, a single lifted tyre will spin freely in the air, leaving the vehicle completely stranded on the rocks.
• Suspension: Ultra-Soft with High Flex. Remove all plastic preload spacers from the shock springs to let the chassis sit low in its "droop" travel. This allows the 4-link solid axles to flex and articulate to extreme angles, keeping all four tyres glued to uneven rock faces.
• Tires: Oversized Rock Crawling Tires with Foam Inserts. Choose highly flexible tires paired with soft memory-foam internal inserts. The soft foam allows the tyre carcass to warp, wrinkle, and physically wrap itself around the sharp edges of rocks for maximum mechanical grip.

Scale Realism Upgrades

If trail performance is only half the fun for you, the other half is making the truck look more believable. The Defender 90 is especially good for this because there are plenty of scale accessories that suit its classic overland look without overwhelming the body shell.

Exterior Adventure Hardware

Adding a few well-chosen exterior parts helps break up the flat look of the polycarbonate shell and gives the Defender a more convincing overland style.

• Moulded Raised Snorkel: A signature look for the classic 90. Brands like Mirage RC produce 1/10 scale snorkels that bolt directly onto the A-pillar and front wing.
• Metal Roof Rack & Luggage Basket: A rugged steel or aluminium roof basket instantly adds scale realism. Look for a compact 1/10 metal roof rack to fit the short-wheelbase roofline.
• Rear Door Ladder & Spare Tire Carrier: Mounting a functional fifth wheel and tire onto the back door via a metal bracket completes the classic utility look.

Lighting Upgrades

The CC-02 kit comes with empty plastic light buckets, meaning standard flat stickers can be completely replaced by functional LED setups.

• Tamiya TLU-01 LED Light Unit: This is Tamiya’s plug-and-play lighting control box. It allows you to run high intensity 5mm white LEDs in the front headlights and red LEDs in the rear.
• Roof-Mounted LED Light Bar: Installing a slim 1/10 scale aluminium LED light bar to the front of your roof rack mimics modern off-road trail rigs and provides immense illumination for night runs.
• Orange Indicator & Marker Lights: Use smaller 3mm LEDs inside the side markers for an authentic factory look.

Wheel and Body Protection

Upgrading selected chassis and wheel components can protect the body, improve durability, and add useful low-down weight.

• Steel Rock Sliders (Side Steps): Ditch the stock plastic chassis steps for heavy steel rock sliders. These bolt to the CC-02 frame rails, protecting the lower edges of your polycarbonate body from scraping against rocks.
• Stamped Steel Beadlock Wheels: Instead of gluing your tires to the stock plastic rims, upgrade to 1.9-inch stamped steel Beadlock wheels. They look exactly like classic Land Rover "steelies," use real miniature metal bolts, and add weight down low to prevent roll-overs.
• Metal Window Grilles: Fine steel mesh covers can be glued or screwed over the rear side and back windows to mimic expedition-style window guards.

Roof Cargo and Trail Details

Once your roof rack is installed, you can dress it up with miniature overland gear. These tiny accessories are typically sold in scale crawler accessory packs:

• Miniature Recovery Boards: Bright orange or black traction boards strapped to the side of the rack.
• Scale High-Lift Jack & Shovel: Micro plastic or cast metal tools pinned to the hood or the roof basket.
• Fuel Jerricans & Scale Luggage: Miniature red fuel cans and scaled-down tie-down straps to hold everything in place.

·         Scale finishing parts: Small additions such as a rear tow hitch, mud flaps, or a front bumper with an integrated winch can complete the look without making the model feel overdone. Mirage RC has a wide range of tow plates and front bumpers for the CC-02 and CC-01 Defenders.

Tamiya Defender 90 CC-02 FAQ

Is the Tamiya Defender 90 CC-02 good for crawling?
The CC-02 is better described as a scale trail chassis than a dedicated competition crawler, but with locked differentials, softer tyres, better bearings, and lower-speed gearing, it becomes far more capable on rocks, roots, and uneven terrain.

What upgrades does the Tamiya CC-02 need first?
The most worthwhile first upgrades are full ball bearings, differential locking where appropriate, better tyres, and electronics that improve low-speed control. These changes usually offer more noticeable benefits than cosmetic parts alone.

What is the best motor and ESC for the Defender 90 CC-02?
For a premium setup, the Hobbywing QuicRun Fusion Pro is a strong choice because it combines the motor and ESC in one compact unit and offers FOC control, IP67 protection, and strong drag brake performance. For a lower-cost brushed option, the Hobbywing 1080 G2 remains one of the most widely recommended crawler ESCs thanks to its waterproof design, adjustable drag brake, and selectable BEC voltage.

Final Verdict

The Tamiya Defender 90 CC-02 is best treated as a scale trail truck rather than a high-speed off-roader. In stock form, it already offers an appealing mix of looks, build quality, and versatility, but a few smart changes to gearing, tyres, bearings, and electronics make it far more capable on the trail. If you enjoy building as much as driving and want a model that looks authentic while still rewarding careful setup work, this is one of the most satisfying CC-02 kits to own.
